Customer Reference

 LT-UTP-C5P-WH-305

Category

PATCH  U/UTP  CAT5e-4P-LSZH

Reference Standard

ISO/IEC11801?TIA-568-C.2

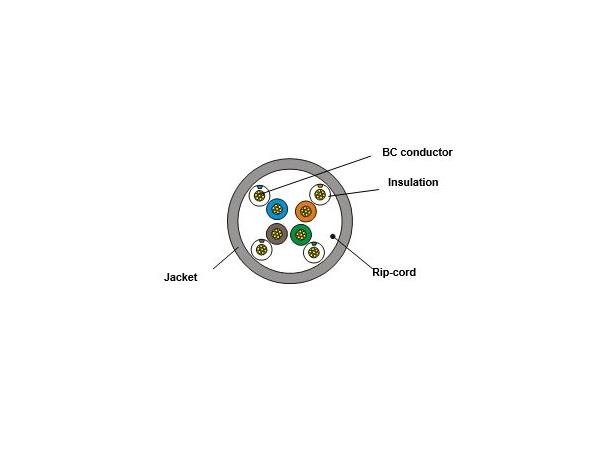

1. Conductor

Material

Stranded-Bare Copper

Nom. O.D. (mm)

26AWG(7/0.16)

2. Insulation

Material

HDPE

Diameter

0.81±0.05mm

Color

A.Blue, White-Blue

B.Orange,White-Orange

C.Green,White-Green

D.Brown, White-Brown

3. Rip-cord

Yes

Drain wire

N/A

4. Shielded

N/A

5. Jacket

Thickness

0.55±0.05 mm

External O.D.

4.7±0.4 mm

Surface

Clean,Frap,Satiation

Material

LSZH(complies RoHS)

Color

Multiple

Surface Printing

Letter height

3.0±0.3mm

Color

Black

Print error & Space

=±0.5%,1m

Packing

Carton, pallet

Carton dimension

According to the requires

Packing length

305±1.5m

Sheath

Physical Properties

Before Aging  Tensile Strength (Mpa)    =10.0

               Elongation (%)          =125

Aging Period (?×hrs)     100?×24h×7d

After Aging  Tensile Strength (Mpa)     =8.0

             Elongation (%)           =100

Cold bend (-20±2?×4h) 8×Cable O.D.,No visible cracks

Electrical Characteristics

(20?)

1.0-100.0MHz, Characteristic impedance (O)     100±15

1.0-100.0MHz, Delay Skew 20?(ns/100m)       =45

DC Resistance 20?(O/100m) max               14.8
