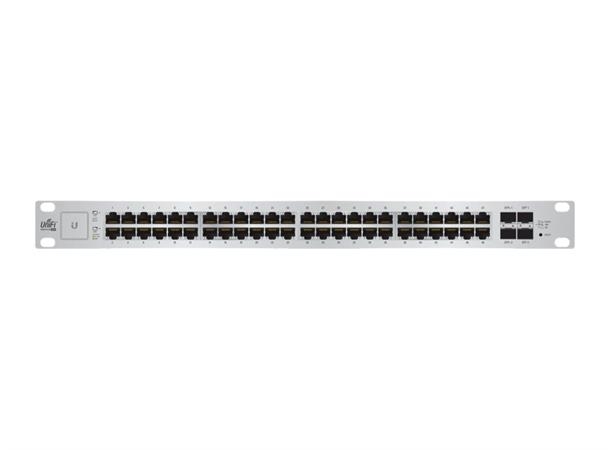

Ubiquiti UniFi Switch 48-Port PoE 500W

Passive POE af-at, 2xSFP, 2xSFP+

PrisNOK14 653,00 inkl. mva.
Artikkelnr.:
51585
Produsent:
Ubiquiti
  • Produktinfo
  • Produktanmeldelser (0)

Hardware Specifications

  • Dimensions 485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69")
  • Weight 5.3 kg (11.68 lb)
  • Total Non-Blocking Throughput 70 Gbps
  • Switching Capacity 140 Gbps
  • Forwarding Rate 104.16 Mpps
  • Max. Power Consumption 500W
  • Power Method 100-240VAC/50-60 Hz, Universal Input
  • Power Supply US-48-500W AC/DC, Internal, 500W DC
  • Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
  • Certifications CE, FCC, IC
  • Rackmount Yes, 1U High
  • ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
  • Operating Temperature -5 to 40° C (23 to 104° F)
  • Operating Humidity 5 to 95% Noncondensing
  • Shock and Vibration ETSI300-019-1.4 Standard

LEDs Per Port

  • Serial Console Port - N/A
  • RJ45 Data Ports - PoE, Speed/Link/Activity
  • SFP+/SFP Data Ports - Speed/Link/Activity

Networking Interfaces

  • (48) 10/100/1000 Mbps RJ45 Ethernet Ports
  • (2) 1/10 Gbps SFP+ Ethernet Ports
  • (2) 1 Gbps SFP Ethernet Ports

PoE Per Port

  • PoE Interfaces
    POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    24VDC Passive PoE (Pins 4, 5+; 7, 8-)
  • Max. PoE+ Wattage per Port by PSE 34.2W
  • Voltage Range 802.3at Mode 50–57V
  • Max. Passive PoE Wattage per Port 17W
  • 24V Passive PoE Voltage Range 20-27V
